Test And Tap™ Valve Flanged Series



BALON FLANGED TEST AND TAP™ FEATURES

  • Secondary 1/2" Gauge Port

  • Flow Through Body - Oversized Full Port

  • Enhanced Safety Over Multiple Connections *

  • Nace/LF-2 Compatible

  • 150, 300, and 600 ANSI Class



BALON VALVE - INTEGRAL

  • Balon Ball Valve - 3000 PSI WP

  • Integral 1/4" or 1/2" NPT Ball Valve

  • 316 Stainless Steel Ball and Stem

  • Rugged Bolted Construction

  • Forged Body and Adapter

  • Nace/LF-2 Compatible



VERSATILE APPLICATIONS:

  • Relief Valve Testing

  • ESD/Safety Pressure Switch Verification

  • Drains, Taps

  • Chemical Injection

  • Sampling

  • Instrumentation Attachment



* Replaces multiple pieces; i.e. Bleed Ring, Valve, Nipple
Eliminating connections also improves emissions compliance

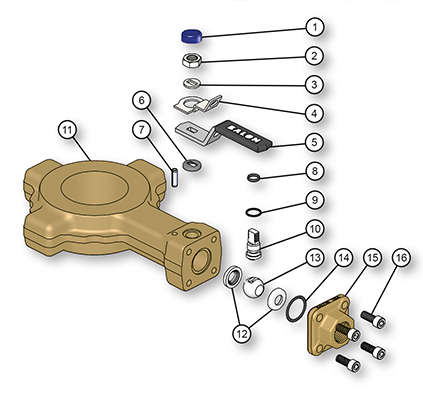

Material Description

ITEM

PART NAME

MATERIAL (NACE)

1 Weather Guard Polyethylene
2 Stem Nut Carbon Steel
3 Spacer Carbon Steel
4 Lock Plate Carbon Steel
5 Handle* Carbon Steel
6 Stem Washer Acetal
7 Stop Pin Carbon Steel
8 Stem O-Ring Fluorocarbon
9 Stem Seal TFE
10 Stem 316 Stainless Steel
11 Body ASTM A350 LF2
12 Seat Nylon (TFE Optional)
13 Ball 316 Stainless Steel
14 Body Seal Fluorocarbon
15 End Adapter ASTM A350 LF2
16 Body Bolts ASTM A320 L7M
17 NPT Pipe Plug Carbon Steel

* Handle and lock device are standard.

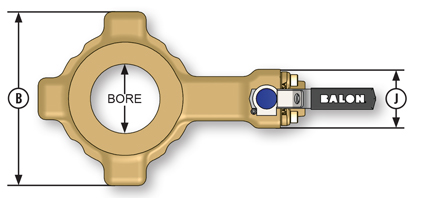

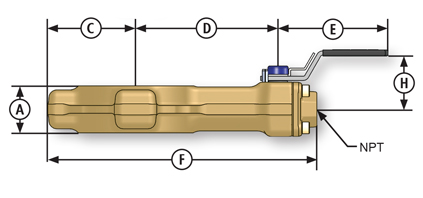

Dimensional Data

SIZE

CATALOG

NUMBER

PORT

ANSI

CLASS

A

B

C

D

E

F

G

H

I

LBS

2

2RF-TNT63NL-1/4

2.25

150/300/600

1.5

5.6

3.2

4.6

3.53

9

.87

1.7

1.8

6.9

2

2RF-TNT63NL-1/2

2.25

150/300/600

1.5

5.6

3.2

4.6

3.53

9

.87

1.7

1.8

6.9

3

3RF-TNT63NL-1/4

3.38

150/300/600

1.5

6.9

3.8

5.5

3.53

10.5

.87

1.7

1.8

8.9

3

3RF-TNT63NL-1/2

3.38

150/300/600

1.5

6.9

3.8

5.5

3.53

10.5

.87

1.7

1.8

8.9

4

4RF-TNT33NL-1/4

4.38

150/300

1.5

8.4

4.6

6.4

3.53

12.2

.87

1.7

1.8

11.6

4

4RF-TNT33NL-1/2

4.38

150/300

1.5

8.4

4.6

6.4

3.53

12.2

.87

1.7

1.8

11.6

4

4RF-TNT63NL-1/4

4.38

600

1.5

8.5

4.6

6.7

3.53

12.5

.87

1.7

1.8

12

4

4RF-TNT63NL-1/2

4.38

600

1.5

8.5

4.6

6.7

3.53

12.5

.87

1.7

1.8

12



Test and Tap™ Valve Identification Key
