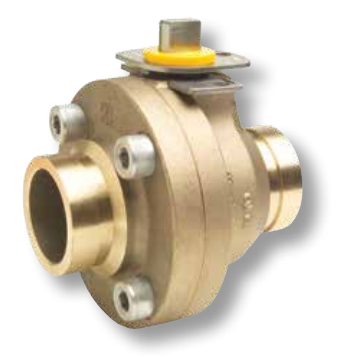

Series F "9D"

Nickel Aluminum Bronze

Grooved End Connection





Floating Ball Valve


  • ASTM B148 GR 955 "9D"
  • Lever Operated Ball Valve
  • 2,000 PSI WP
  • 2"
  • Bolted Body Construction

Valve Features
  • Meets API 641 Emissions Standard
  • Enhanced Protection Against CO2 and Saltwater Corrosion
  • NACE Standard
  • Multi-Seal Seats
  • Fire Safe Design
  • Minimizes Risk of Galling Associated with Stainless Steel
  • Exceptional Yield Strength
  • Rugged Locking Device Standard
  • Maintenance Free
Material Description

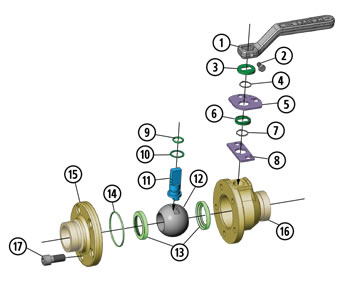

ITEM PART
NAME
MATERIAL NACE
(STANDARD)
1 Handle* Carbon Steel
2 Handle Bolt Standard Hex Bolt
3 Weather Guard Polyethylene
4 Lock Plate Retainer Stainless Steel
5 Lock Plate Stainless Steel
6 Dust Cover Polyethylene
7 Stop Plate Retainer Stainless Steel
8 Stop Plate Stainless Steel
9 Stem O-Ring Fluorocarbon
10 Stem Seal TFE
11 Stem 316 Stainless Steel
12 Ball 316 Stainless Steel
13 Ball Seat Nylon (TFE Optional**)
14 Body O-Ring Fluorocarbon
15 End Adapter ASTM B148-9D (955)
16 Body ASTM B148-9D (955)
17 Body Stud Bolts ASTM A193 B7M
* Handle is optional. Balon valves can also be operated with a standard open-end wrench.
** Seat selection may result in de-rating of pressure. See Seat Pressure Ratings chart on page B-37 for more information.

Dimensional Data

SIZE CATALOG NUMBER PORT WP A B D E F G H J M N LBS. HANDLE Cv
2x1.5x2 2R-F94N-GE 1.5 2000 5.5 2.75 4.87 3.62 .75 .497 .873 1.62 7.25 5.25 11.5 P-4128-CS 140
    * Balon manufactured Actuation Mounting Hardware available. Please see page A-2 for details.
