Valve

Series F

Carbon Steel

Threaded End Connection

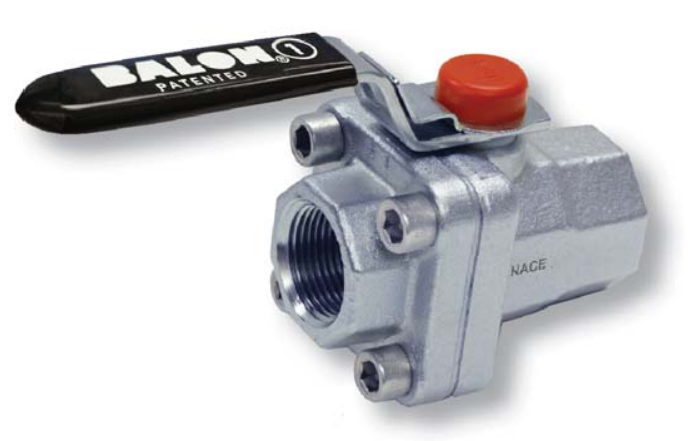

Floating Ball Valve

  • NACE Standard
  • Lever Operated Ball Valve
  • 3,000 PSI WP
  • ¼" Through 1"
  • Bolted Body Construction

Valve Features
  • Meets API 641 Emissions Standard
  • Forged Body and Adapter
  • Rugged Bolt Construction
  • Low-Torque Operation
  • Multi-Seal Seats
  • Maintenance Free
  • Fire Safe Design

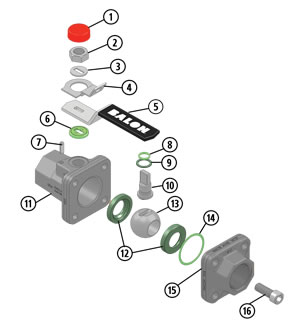

Material Description
ITEM PART
NAME		 MATERIAL
(NACE)
1 Weather Guard Polyethylene
2 Stem Nut Carbon Steel
3 Spacer Carbon Steel
4 Lock Plate Carbon Steel
5 Handle* Carbon Steel
6 Stem Washer Acetal
7 Stop Pin Carbon Steel
8 Stem O-Ring Fluorocarbon
9 Stem Seal TFE
10 Stem 316 Stainless Steel
11 Body ASTM A105, Normalized/A350 LF2 CL1
12 Ball Seat Nylon (TFE Optional)
13 Ball 316 Stainless Steel
14 Body Seal Fluorocarbon
15 End Adapter ASTM A105, Normalized/A350 LF2 CL1
16 Body Bolts ASTM A193 B7M/ A320 L7M
* Handle and lock device are standard.
Dimensional Data

SIZE CATALOG NUMBER PORT WP A B C D E F LBS. Cv
NACE TRIM
316 SS
BALL & STEM
.25 x .375 x .25 1/4F-F03N-SE .38 3000 1.75 1.12 3.50 1.88 0.88 2.25 1 -
.50 x .375 x .50 1/2R-F03N-SE .38 3000 1.75 1.19 3.50 1.88 0.88 2.38 1 6
.50 x .50 x .50 1/2F-F03N-SE .50 3000 1.92 1.38 3.50 1.96 0.96 3.00 3.3 -
.75 x .75 x .75 3/4F-F03N-SE .75 3000 2.62 1.81 4.87 2.56 1.31 3.62 3.3 -
1 x .75 x 1 1R-F03N-SE .75 3000 2.62 1.88 4.87 2.56 1.31 3.75 3.3 30
