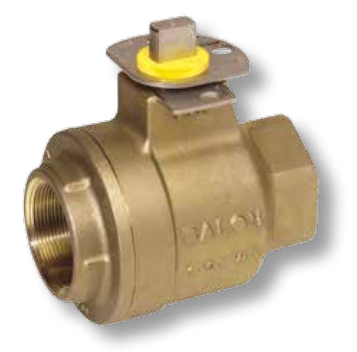

Valve

Series S "9D"

Nickel Aluminum Bronze

Threaded End Connection





Floating Ball Valve


  • ASTM B148 GR 955 "9D"
  • Lever Operated Ball Valve
  • To 1,000 PSI WP
  • 2" Through 4"
  • Threaded Body Construction

Related Valves
Valve Features
  • Meets API 641 Emissions Standard
  • Enhanced Protection Against CO2 and Saltwater Corrosion
  • NACE Standard
  • Multi-Seal Seats
  • Fire Safe Design
  • Minimizes Risk of Galling Associated with Stainless Steel
  • Exceptional Yield Strength
  • Rugged Locking Device Standard
  • Maintenance Free
Material Description

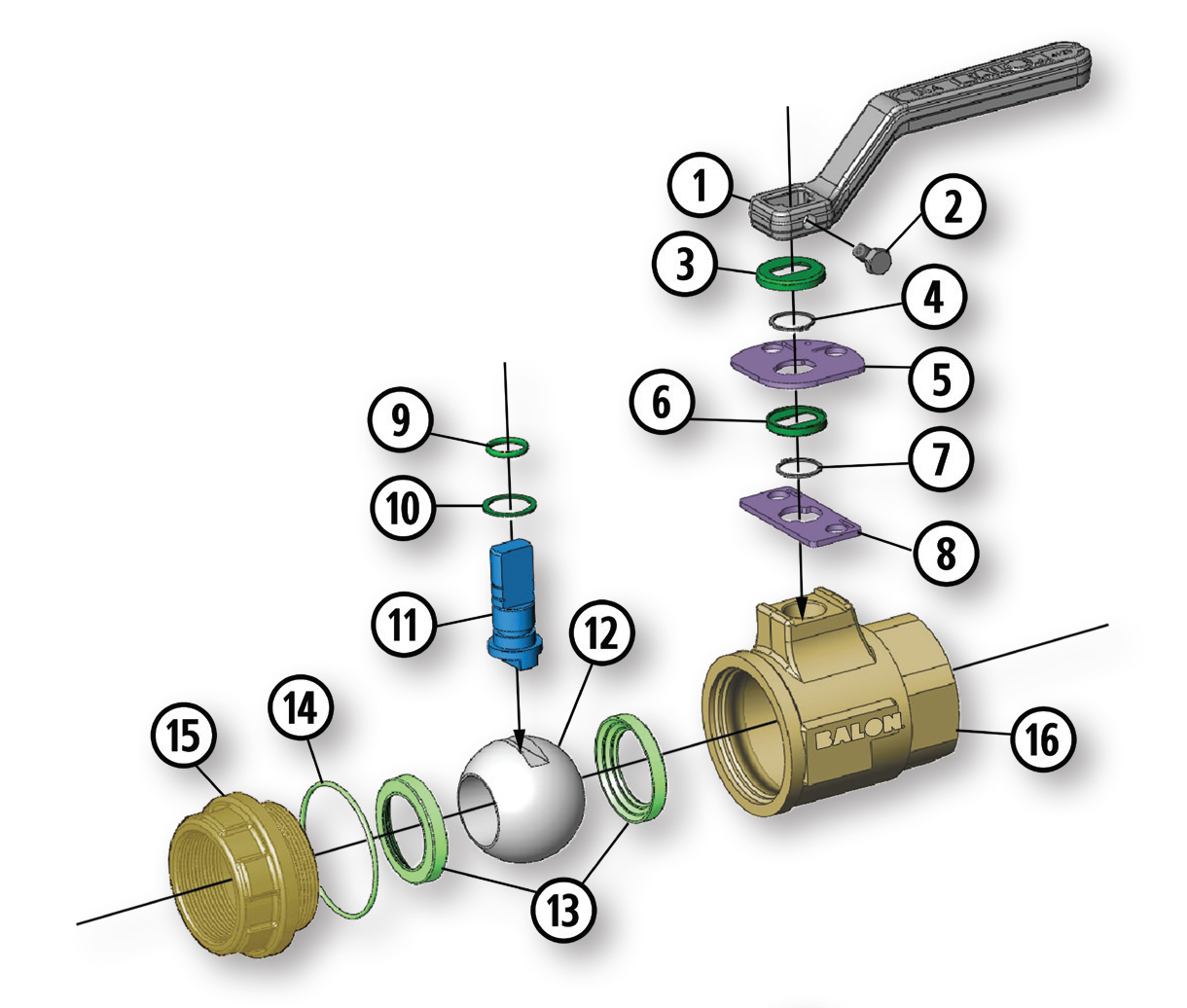

ITEM PART
NAME
MATERIAL
(STANDARD)
1 Handle* Carbon Steel/Ductile Iron
2 Handle Bolt Standard Hex Bolt
3 Weather Guard Polyethylene
4 Lock Plate Retainer Stainless Steel
5 Lock Plate Stainless Steel
6 Dust Cover Polyethylene
7 Stop Plate Retainer Stainless Steel
8 Stop Plate Stainless Steel
9 Stem O-Ring Fluorocarbon
10 Stem Seal TFE
11 Stem 316 Stainless Steel
12 Ball 316 Stainless Steel
13 Ball Seat Nylon (TFE Optional**)
14 Body O-Ring Fluorocarbon
15 End Adapter ASTM B148-9D (955)
16 Body ASTM B148-9D (955)
* Handle is optional. Balon valves can also be operated with a standard open-end wrench.
** Seat selection may result in de-rating of pressure. See Seat Pressure Ratings chart on page B-37 for more information.

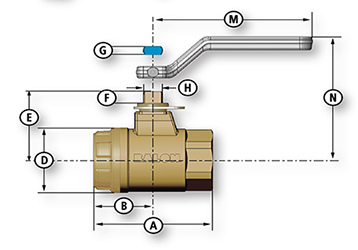

Dimensional Data

SIZE CATALOG NUMBER PORT WP A B D E F G H M N LBS. HANDLE Cv
2x1.5x2 2R-S44N-SE 1.5 1000 5.25 2.66 3.38 3.66 .75 .434 .873 7.25 5.25 7.5 P-4128-CS 125
2x2x2 2F-S44N-SE 2 1000 5.75 2.88 4.25 4.38 .75 .497 .998 10.25 6.20 12 P-4129-CS -
3x2x3 3R-S44N-SE 2 1000 7.25 3.50 4.50 4.38 .75 .497 .998 10.25 6.20 17 P-4129-CS 180
3x3x3 3F-S44N-SE 3 1000 8.75 4.38 6 5.75 .88 .747 1.373 20 7.75 31 P-4127-DI -
4x3x4 4R-S44N-SE 3 1000 8.75 4.38 6 5.75 .88 .747 1.373 20 7.75 36 P-4127-DI 525
4x4x4 4F-S34N-SE 4 750 9.38 4.69 7 6.38 1.06 .747 1.373 20 8.38 52 P-4127-DI -
  * Balon manufactured Actuation Mounting Hardware available. Please see page A-2 for details.
