Series C

Carbon Steel

ANSI Class 150

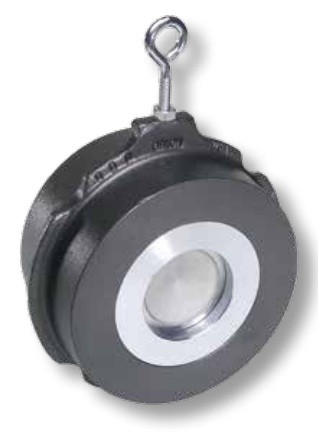

Wafer Check Valve

  • Long Pattern Swing Check Valve
  • ANSI Class 150 (285 PSI WP)
  • ANSI Class 300 (740 PSI WP)
  • ANSI Class 600 (1480 PSI WP)
  • 2" Through 6"
  • Forged Steel Body Construction

Valve Features
  • Replaceable Seat Disc Cartridge
  • Seal Located in Seat, Thus Protected From Flow
  • NACE Standard
  • 316 Stainless Steel Disc Standard
  • Generally Larger Port Sizes Than Other Brands

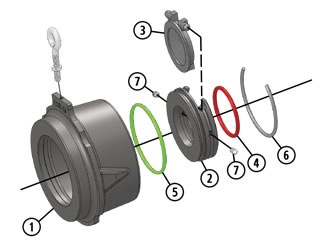

Material Description
ITEM PART
NAME		 CARBON STEEL
SEAT		 STAINLESS STEEL
SEAT
1 Body ASTM A105 ASTM A105
2 Seat Replaceable Carbon Steel Replaceable 316 Or 17-PH Stainless Steel
3 Disc Replaceable 316 Stainless Steel Replaceable 316 Stainless Steel
4 O-Ring Seat Seal: Fluorocarbon Seat Seal: Fluorocarbon
5 O-Ring Assembly Seal: Buna-N Assembly Seal: Fluorocarbon
6 Retainer Stainless Steel Stainless Steel
7 Set Screw Stainless Steel Stainless Steel

Dimensional Data

SIZE CATALOG NUMBER PORT D T STUD
LENGTH		 LBS.
CARBON STEEL SEAT STAINLESS STEEL SEAT
2 2L-150 2L-150S 1.50 4.12 2.37 5.75 4.9
2 2L-300 2L-300S 1.50 4.25 2.37 6.25 4.9
2 2L-600 2L-600S 1.50 4.37 2.37 6.75 4.9
3 3L-150 3L-150S 2 5.37 2.87 6.50 11.8
3 3L-300 3L-300S 2 5.87 2.87 7.25 11.8
3 3L-600 3L-600S 2 5.87 2.87 8 11.8
4 4L-150 4L-150S 3 6.87 2.87 6.50 15
4 4L-300 4L-300S 3 7.12 2.87 7.75 15
4 4L-600 4L-600S 3 7.87 3.12 9.25 16
6 6L-150 6L-150S 4.75 8.75 3.87 8 34
6 6L-300 6L-300S 4.75 9.87 3.87 9 34.8
6 6L-600 6L-600S 4.75 10.50 5.37 12.50 48
