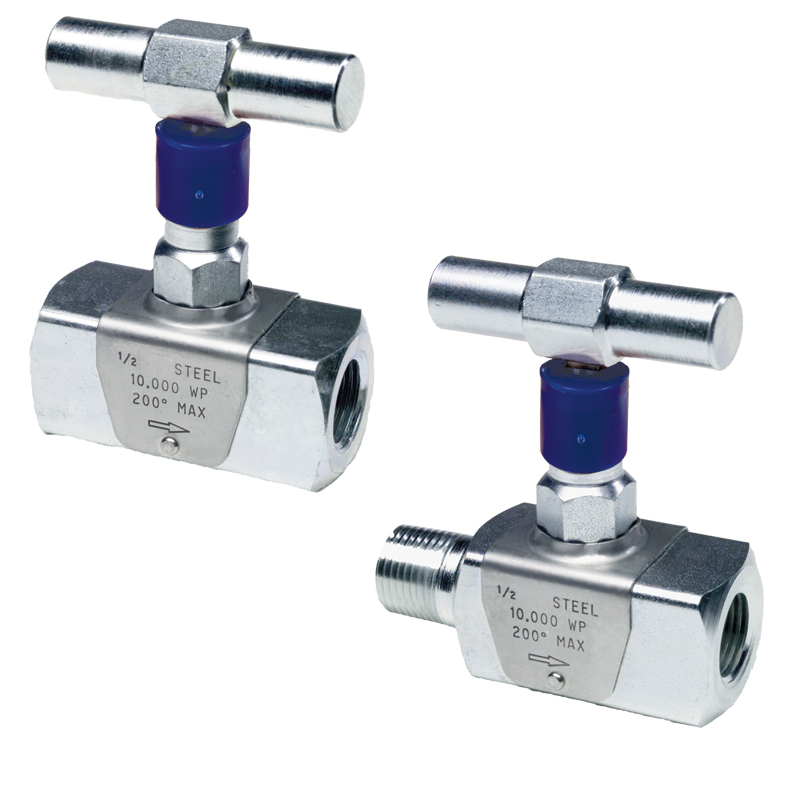

Valve
10000 PSI
Carbon Steel
Threaded End Connection
Needle Valve
Click to Enlarge
100% Made in USA
View\Save Cut-Sheet
Valve Features
316 Stainless Steel Stem Standard
Bonnet Locking Shroud
Precise Metering
Maximum Temp 200°
Material Description
ITEM
PART
NAME
CARBON STEEL
VALVE
1
Body (FxF)
AISI 1215
2
Body (MxF)
AISI 1018
3
Handle
Carbon Steel
4
Handle Bolt
SHCS Zinc Plated
5
Bonnet Cover
Polypropylene
6
Bonnet
AISI 1045
7
Bonnet O-Ring
Buna-N
8
Stem
316 Stainless Steel
9
Stem Back-up Ring
Buna-N
10
Stem O-Ring
Buna-N
11
Bonnet Locking Shroud
304 Stainless Steel

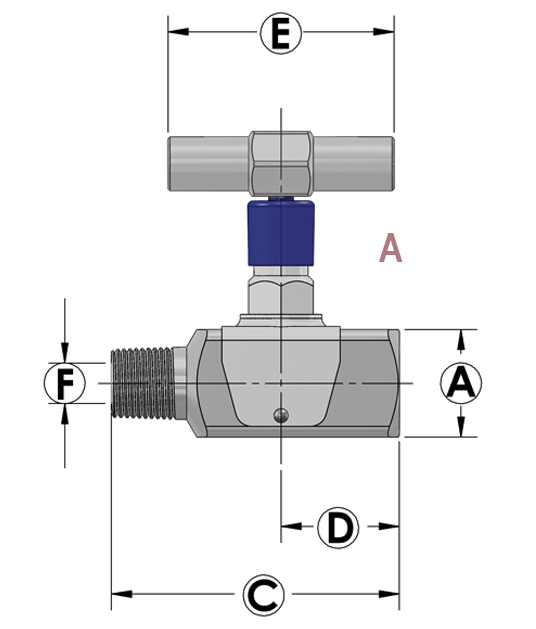

Dimensional Data
SIZE
CATALOG NUMBER
SEAT
DIAGRAM
A
B
C
D
E
F
LBS.
CARBON STEEL
.25
N203-MF
Metal
A
1.25
3.87
3.25
1.37
2.62
.219
1.5
.50
N403-MF
Metal
A
1.25
3.87
3.37
1.37
2.62
.219
1.5
.50
N403-FF
Metal
B
1.25
3.87
2.75
1.37
2.62
.219
1.5
