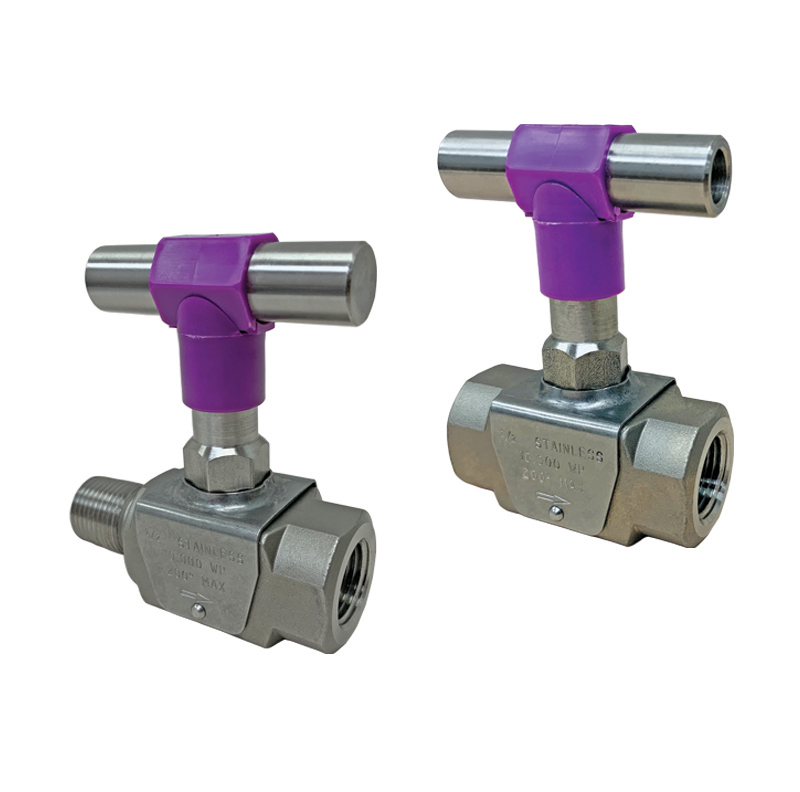

Needle Valve

  • Carbon Steel Needle Valve
  • Metal Seated

Valve Features
  • Bonnet Locking Shroud
  • Precise Metering
  • Maximum Temp 200°
Material Description

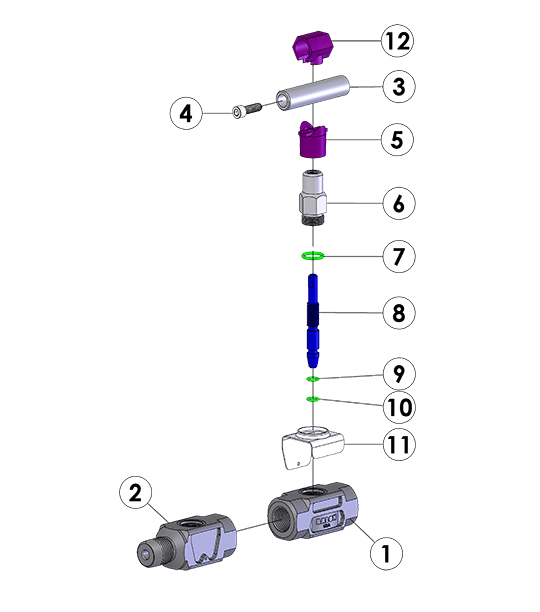

ITEM PART
NAME		 STAINLESS STEEL
VALVE
1 Body (FxF) 316 Stainless Steel
2 Body (MxF) 316 Stainless Steel
3 Handle 303 Stainless Steel
4 Handle Bolt 18-8 Stainless Steel
5 Bonnet Cover Polyethylene
6 Bonnet 316 Stainless Steel
7 Bonnet O-Ring Buna-N (NACE Fluorocarbon)
8 Stem 316 Stainless Steel
9 Stem Back-up Ring Buna-N (NACE Fluorocarbon)
10 Stem O-Ring Buna-N (NACE Fluorocarbon)
11 Bonnet Locking Shroud 304 Stainless Steel

Dimensional Data

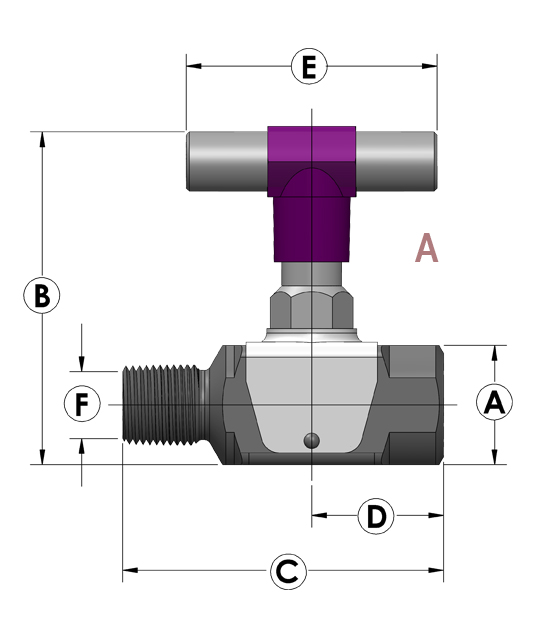

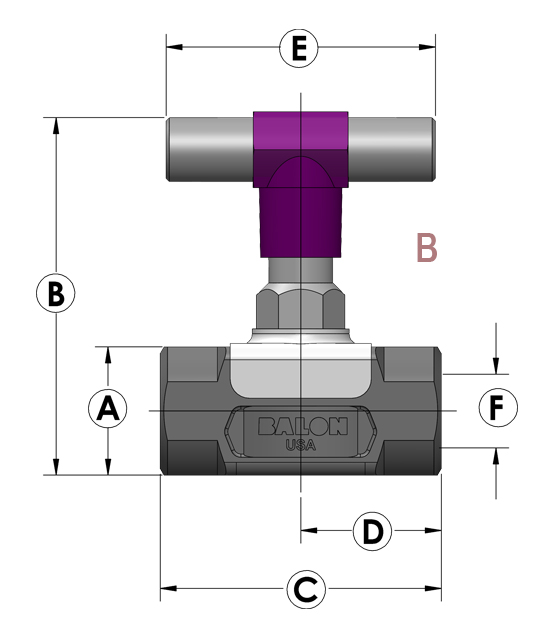

SIZE CATALOG NUMBER SEAT DIAGRAM A B C D E F LBS.
STAINLESS STEEL NACE
.25 N205-MF N205-MFN Metal A 1.25 3.87 3.25 1.37 2.62 .219 1.5
.50 N405-MF N405-MFN Metal A 1.25 3.87 3.37 1.37 2.62 .219 1.5
.50 N405-FF N405-FFN Metal B 1.25 3.87 2.75 1.37 2.62 .219 1.5
