Valve

6000 PSI

Carbon Steel

Threaded End Connection





Needle Valve

  • 100% Made in USA

Valve Features
  • 316 Stainless Steel Stem Standard
  • Non-Rotating Seats
  • Bonnet Locking Shroud
  • Precise Metering
  • Split Seat Design
  • Maximum Temp 200°
Material Description
ITEM PART
NAME		 CARBON STEEL
VALVE
1 Body (MxF) (90°) A732-13Q (Investment Casting)
2 Body (FxF) AISI 1215
3 Body (MxF) AISI 1018
4 Handle Carbon Steel
5 Handle Bolt SHCS Zinc Plated
6 Bonnet Cover Polypropylene
7 Bonnet AISI 1045
8 Bonnet O-Ring Buna-N
9 Stem 316 Stainless Steel
10 Stem Back-up Ring Buna-N
11 Stem O-Ring Buna-N
12 Resilient Seat (2 Piece) Acetal
13 Bonnet Locking Shroud 304 Stainless Steel

Dimensional Data

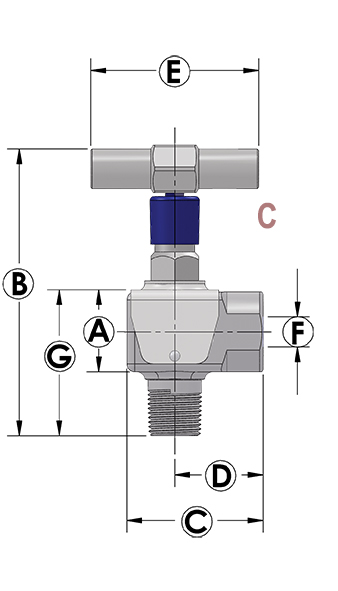

SIZE CATALOG NUMBER SEAT DIAGRAM A B C D E F G LBS.
CARBON STEEL
.25 N263-MF Resilient A 1.25 3.87 3.25 1.37 2.62 .219 N/A 1.5
.25 N263-FF Resilient B 1.25 3.87 2.75 1.37 2.62 .219 N/A 1.5
.50 N463-MF Resilient A 1.25 3.87 3.37 1.37 2.62 .219 N/A 1.5
.50x.25 N463-MRF Resilient A 1.25 3.87 3.37 1.37 2.62 .219 N/A 1.5
.50 N463-FF Resilient B 1.25 3.87 2.75 1.37 2.62 .219 N/A 1.5
.50 N463-A Resilient C 1.25 4.87 2.12 1.37 2.62 .219 2.25 1.5
