Valve

6000 PSI

Stainless Steel

Threaded End Connection





Needle Valve

  • 100% Made in USA

Valve Features
  • Non-Rotating Seats
  • Bonnet Locking Shroud
  • 316 Stainless Steel Stem Standard
  • Precise Metering
  • Split Seat Design
  • Maximum Temp 200°

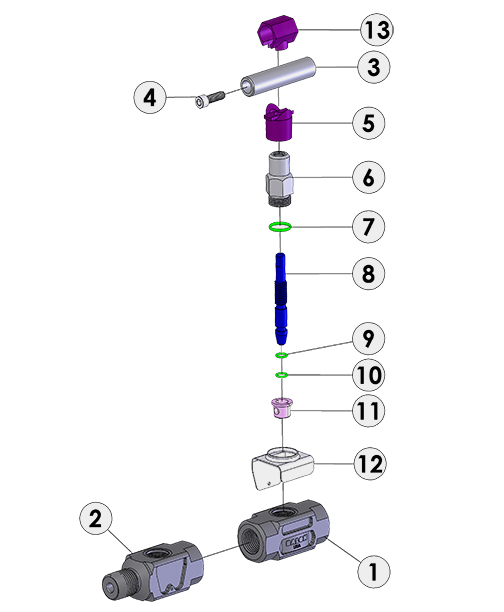

Material Description
ITEM PART
NAME		 STAINLESS STEEL
VALVE
1 Body (FxF) 316 Stainless Steel
2 Body (MxF) 316 Stainless Steel
3 Handle 303 Stainless Steel
4 Handle Bolt 18-8 Stainless Steel
5 Bonnet Cover Polypropylene
6 Bonnet 316 Stainless Steel
7 Bonnet O-Ring Buna-N (NACE Fluorocarbon)
8 Stem 316 Stainless Steel
9 Stem Back-up Ring Buna-N (NACE Fluorocarbon)
10 Stem O-Ring Buna-N (NACE Fluorocarbon)
11 Resilient Seat (2 Piece) Acetal
12 Bonnet Locking Shroud 304 Stainless Steel
13 Handle Cover Polypropylene

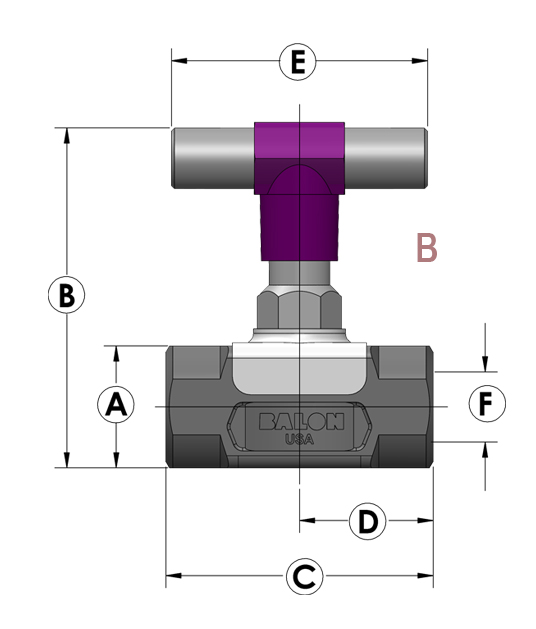

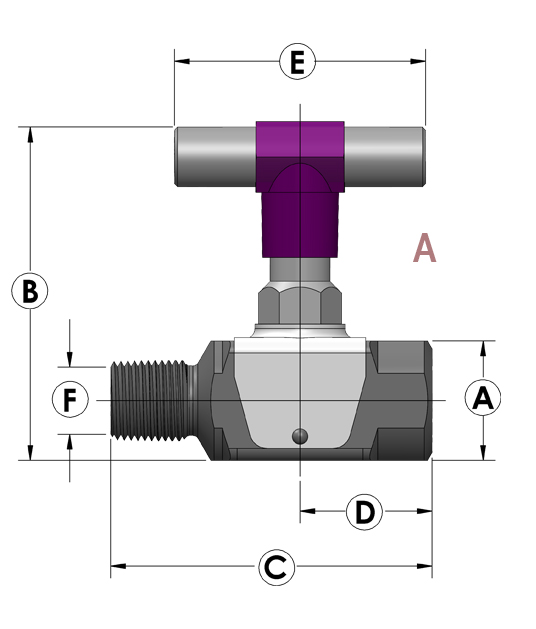

Dimensional Data

SIZE CATALOG NUMBER SEAT DIAGRAM A B C D E F LBS.
STAINLESS STEEL NACE
.25 N265-MF N265-MFN Resilient A 1.25 3.87 3.25 1.37 2.62 .219 1.25
.50 N465-MF N465-MFN Resilient A 1.25 3.87 3.37 1.37 2.62 .219 1.25
.50 N465-FF N465-FFN Resilient B 1.25 3.87 2.75 1.37 2.62 .219 1.20
