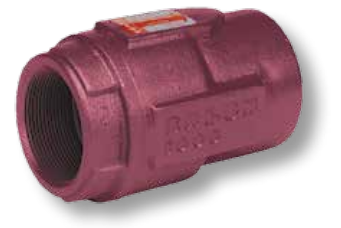

Valve

Series C

Ductile Iron

Threaded End Connection





Swing Check Valve


  • Swing Check Valve
  • 1,000 PSI WP
  • 2"
  • Threaded Body Connection

Valve Features
  • High Grade Annealed Ductile Iron for Better Corrosion Resistance and Greater Yield Strength
  • Replaceable Seat Disc Cartridge
  • Stainless Steel Disc Standard
  • Seal Located in Seat, Thus Protected From Flow
  • NACE Standard

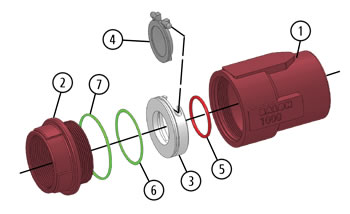

Material Description
ITEM PART
NAME
CARBON STEEL
SEAT
STAINLESS STEEL
SEAT
1 Body ASTM A395 Class 60-40-18 Fully Annealed ASTM A395 Class 60-40-18 Fully Annealed
2 Adapter ASTM A395 Class 60-40-18 Fully Annealed ASTM A395 Class 60-40-18 Fully Annealed
3 Seat Replaceable Carbon Steel Replaceable 316 Stainless Steel
4 Disc Replaceable 316 Stainless Steel Replaceable 316 Stainless Steel
5 O-Ring Seat Seal: Fluorocarbon Seat Seal: Fluorocarbon
6 O-Ring Assembly Seal: Buna-N Assembly Seal: Fluorocarbon
7 O-Ring Body Seal: Buna-N Body Seal: Fluorocarbon

Dimensional Data

SIZE CATALOG NUMBER PORT D L LBS.
CARBON STEEL SEAT STAINLESS STEEL SEAT
2 2R-C42-SE 2R-C42S-SE 1.5 3.37 5.37 6
