Valve

Series C

Carbon Steel

Flanged End Connection



ANSI Class 150

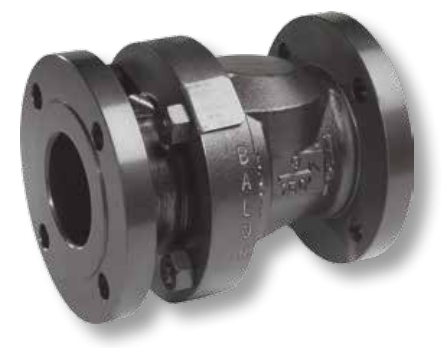

Swing Check Valve

  • Swing Check Valve
  • ANSI Class 150 (285 PSI WP)
  • 2" Through 6"
  • Bolted Body Construction

Valve Features
  • Replaceable Seat Disc Cartridge
  • Seal Located in Seat, Thus Protected From Flow
  • NACE Standard
  • Stainless Steel Disc and Seat Standard

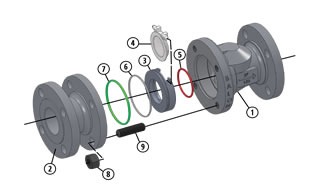

Material Description
ITEM PART NAME DESCRIPTION
1 Body ASTM A216 WCB/A105, Normalized
2 Adapter ASTM A216 WCB/A105, Normalized
3 Seat Replaceable 316 Stainless Steel
4 Disc Replaceable 316 Stainless Steel
5 O-Ring Seat Seal: Fluorocarbon
6 O-Ring Assembly Seal: Fluorocarbon
7 O-Ring Body Seal: Fluorocarbon
8 Nuts ASTM A194 2HM
9 Body Bolts ASTM A193 B7M

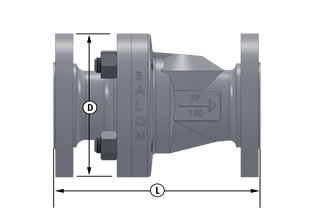

Dimensional Data

SIZE CATALOG PORT D L LBS.
2 2F-C13S-RF 2 6 8 27
3 3F-C13S-RF 3 7.50 9.5 48
4 4F-C13S-RF 4 9 11.5 74
6 6F-C13S-RF 6 12.75 14 162
