Valve

Series C

Carbon Steel

ANSI Class 300

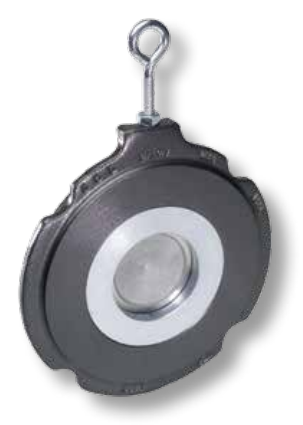

Wafer Check Valve

  • 100% Made in USA
  • ANSI Class 150 (285 PSI WP)
  • ANSI Class 300 (740 PSI WP)
  • ANSI Class 600 (1480 PSI WP)
  • 2" Through 6"
  • Forged Steel Body Construction
  • NACE Standard

Valve Features
  • Improved Seat Design Protects Seal From Flow
  • Replaceable 316 Stainless Steel Seat Disc Cartridge Standard
  • Larger Port Sizes Than Other Brands
Material Description
ITEM PART
NAME		 CARBON STEEL
SEAT		 STAINLESS STEEL
SEAT
1 Body ASTM A105, Normalized ASTM A105, Normalized
2 Seat Replaceable Carbon Steel Replaceable 316 Or 17-PH Stainless Steel
3 Disc Replaceable 316 Stainless Steel Replaceable 316 Stainless Steel
4 O-Ring Seat Seal: Fluorocarbon Seat Seal: Fluorocarbon
5 O-Ring Assembly Seal: Buna-N Assembly Seal: Fluorocarbon
6 Retainer Stainless Steel Stainless Steel
7 Set Screw Stainless Steel Stainless Steel

Dimensional Data

SIZE CATALOG NUMBER PORT D T STUD
LENGTH		 LBS.
CARBON STEEL SEAT STAINLESS STEEL SEAT
2 2T-150 2T-150S 1.25 4.12 0.75 4.25 2.50
2 2T-300 2T-300S 1.25 4.37 0.75 4.50 2.50
2 2T-600 2T-600S 1.25 4.37 0.75 5.25 2.50
3 3T-150 3T-150S 2.00 5.37 0.75 4.50 4.40
3 3T-300 3T-300S 2.00 5.87 0.75 5.25 4.40
3 3T-600 3T-600S 2.00 5.87 0.75 6.00 4.40
4 4T-150 4T-150S 2.81 6.87 0.75 4.50 7.00
4 4T-300 4T-300S 2.81 7.12 0.75 5.50 6.95
4 4T-600 4T-600S 2.62 7.62 0.87 7.00 8.50
6 6T-150 6T-150S 4.50 8.75 0.87 5.00 13.50
6 6T-300 6T-300S 4.50 9.87 0.87 5.75 13.60
6 6T-600 6T-600S 4.00 10.50 1.12 8.00 19.00
