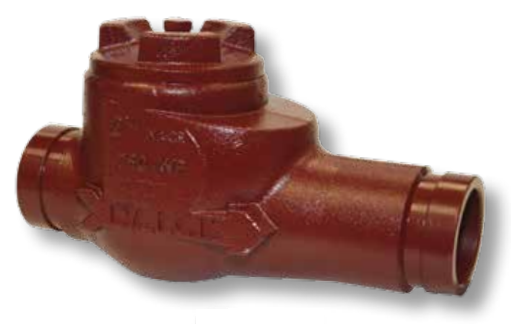

Valve

Series D

Ductile Iron

Grooved End Connection





Swing Check Valve

  • 100% Made in USA
  • Top Entry Swing Check Valve
  • 750 PSI WP
  • 2" Through 4"
  • Threaded Body Construction
  • NACE Standard

Related Valves

Aluminum Bronze
Valve Features
  • High Grade Annealed Ductile Iron for Better Corrosion Resistance and Greater Yield Strength
  • Patented Hinge-Works for Extended Life
  • Replaceable 316 Stainless Steel Disc Standard
  • Fully Machined Grooves
  • Improved by Design for Easier Bonnet Removal

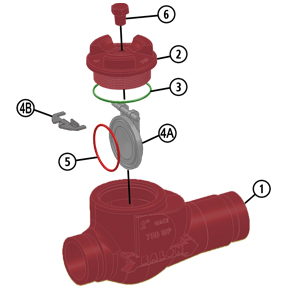

Material Description
ITEM PART NAME DESCRIPTION
1 Body ASTM A395 Class 60-40-18 Fully Annealed
2 Bonnet ASTM A395 Class 60-40-18 Fully Annealed
2 Bonnet Seal Fluorocarbon
4A Disc Replaceable 316 Stainless Steel
4B Disc Hangar 316 Stainless Steel
5 Disc Seal Fluorocarbon
6 Pipe Plug Carbon Steel
Dimensional Data

SIZE CATALOG NUMBER PORT WP A B C LBS.
2 2F-D32-GE 2 750 9.00 3.58 1.82 10
3 3F-D32-GE 3 750 10.75 4.50 2.45 20
4 4F-D32-GE 4 750 12.00 5.54 2.95 36
