Balon New Products

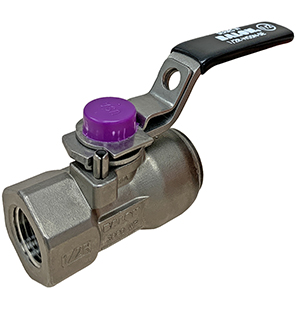

Series W Stainless Steel

Balon has expanded our Series W Stainless Steel Welded Body Construction - Floating Ball Valve product line to include:

1/4" Through 1"
Female x Female Connection

from 1/4F-W95N-SE
to 1R-W05N-SE

2000 to 3000 PSI WP

  • 100% Made in USA
  • 2000 to 3000 PSI WP
  • 1/4" Through 1"
  • Welded Body Construction
  • NACE Standard
  • Certified Low Emission per API 641
  • Fire Safe Design
  • Welded Top Works Keeps Travel Stops Intact When Handle is Removed
  • All Metal Components Made from Stainless Steel
  • Multi-Seal Seats

_____________________________________________________________________________________________

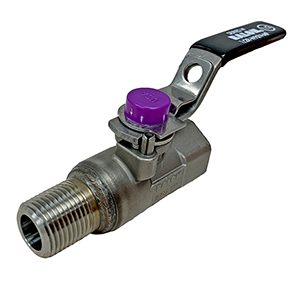

Series W Stainless Steel

1/2" and 1" Reduced Port
Male x Female Connection

1/2R-W95N-MF & 1/2R-W05N-MF
1R-W95N-MF & 1R-W05N-MF

2000 to 3000 PSI WP

  • 100% Made in USA
  • 2000 to 3000 PSI WP
  • 1/2" and 1" Reduced Port
  • Welded Body Construction
  • NACE Standard
  • Certified Low Emission per API 641
  • Fire Safe Design
  • Welded Top Works Keeps Travel Stops Intact When Handle is Removed
  • All Metal Components Made from Stainless Steel
  • Multi-Seal Seats

_____________________________________________________________________________________________

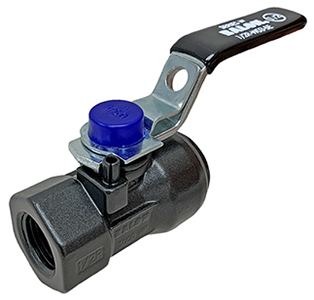

Series W Carbon Steel

Balon has expanded our Series W Carbon Steel Welded Body Construction - Floating Ball Valve product line to include:

1/4" Through 1"
Female x Female Connection

from 1/4F-W93-SE
to 1R-W03-SE

2000 to 3000 PSI WP

  • 100% Made in USA
  • 2000 to 3000 PSI WP
  • 1/4" Through 1"
  • Welded Body Construction
  • Certified Low Emission per API 641
  • Fire Safe Design
  • Welded Top Works Keeps Travel Stops Intact When Handle is Removed
  • 316 Stainless Steel Ball and Stem Standard
  • Locking Device Standard
  • Multi-Seal Seats

_____________________________________________________________________________________________

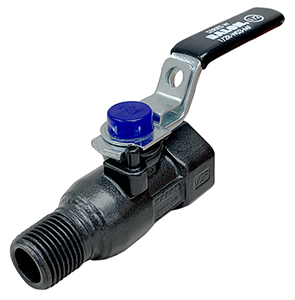

Series W Carbon Steel

1/2" and 1" Reduced Port
Male x Female Connection

1/2R-W93-MF & 1/2R-W03-MF
1R-W93-MF & 1R-W03-MF

2000 to 3000 PSI WP

  • 100% Made in USA
  • 2000 to 3000 PSI WP
  • 1/2" and 1" Reduced Port
  • Welded Body Construction
  • Certified Low Emission per API 641
  • Fire Safe Design
  • Welded Top Works Keeps Travel Stops Intact When Handle is Removed
  • 316 Stainless Steel Ball and Stem Standard
  • Locking Device Standard
  • Multi-Seal Seats

_____________________________________________________________________________________________

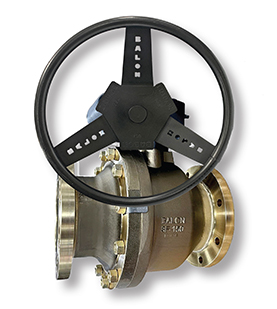

Series F "9D" Nickel Aluminum Bronze

Balon has expanded our Series F "9D" Nickel Aluminum Bronze Flanged End Connection - Floating Ball Valve product line to include:

6" and 8" ANSI Class 150

6F-F14N-RF
8F-F14N-RF

ANSI Class 150

  • 100% Made in USA
  • 6" through 8" Full Port
  • ANSI Class 150 (285 PSI WP)
  • ASTM B148 GR 955 "9D"
  • NACE Standard
  • Bolted Body Construction
  • Multi-Seal Seats
  • Rugged Locking Device Standard
  • Exceptional Yield Strength
  • Enhanced Protection Against CO2 and Saltwater Corrosion
  • Certified Low Emission per API 641
  • Fire Safe Design
  • Minimizes Risk of Galling Associated with Stainless Steel

_____________________________________________________________________________________________

Series F "9D" Nickel Aluminum Bronze

2" and 4" ANSI Class 150

2F-F14N-RF & 3F-F14N-RF
4F-F14N-RF

ANSI Class 150

  • 100% Made in USA
  • 2" through 4" ANSI Class 150 (285 PSI WP)
  • ASTM B148 GR 955 "9D"
  • NACE Standard
  • Bolted Body Construction
  • Multi-Seal Seats
  • Rugged Locking Device Standard
  • Enhanced Protection Against CO2 and Saltwater Corrosion
  • Certified Low Emission per API 641
  • Fire Safe Design
  • Minimizes Risk of Galling Associated with Stainless Steel

_____________________________________________________________________________________________

Series T Buttweld End Carbon Steel

Balon has expanded our Series T Carbon Steel Buttweld End Connection - Trunnion Ball Valve product line to include:

10" and 12" ANSI Class 150 & 300
4" through 12" ANSI Class 600

10F-T13CN-BW & 10F-T13SN-BW
12F-T13CN-BW & 12F-T13SN-BW

ANSI Class 150, 300, 600

  • 100% Made in USA
  • 10" and 12" ANSI Class 150 & 300
  • 4" and 12" ANSI Class 600
  • Bolted Body Construction
  • Multi-Seal Seats
  • Temperature rating of -20° to 250° F
  • Available in Low-Temp Service to -50° F
  • Certified Low Emission per API 641
  • Certified Fire Safe per API 6FA
  • Exclusive Balon Gearbox

_____________________________________________________________________________________________

Series F Flanged End Carbon Steel

Balon has expanded our Series F Carbon Steel Flanged End Connection - Floating Ball Valve product line to include:

3" ANSI Class 900
3" ANSI Class 1500

3F-F93 & 3F-F93N
3R-F03 & 3R-F03N

ANSI Class 900 (2220 PSI WP)

  • 100% Made in USA
  • ANSI Class 900 (2220 PSI WP)
  • ANSI Class 1500 (3705 PSI WP)
  • 3" Full Port Only
  • Bolted Body Construction
  • Multi-Seal Seats
  • NACE Option With 316 Stainless Steel Ball and Stem Available
  • Rugged Locking Device Standard
  • Certified Low Emission per API 641
  • Certified Fire Safe per API 6FA
  • Exclusive Balon Gearbox
