Valve

Series F

Carbon Steel

Threaded End Connection





Floating Ball Valve


  • 100% Made in USA
  • 3000 PSI WP
  • ¼" Through 1"
  • Bolted Body Construction
  • NACE Standard

Valve Features
  • Certified Low Emission per API 641
  • Fire Safe Design
  • Low-Torque Operation
  • Multi-Seal Seats (See page B-5)
  • Available in Low-Temp Service to -50°F

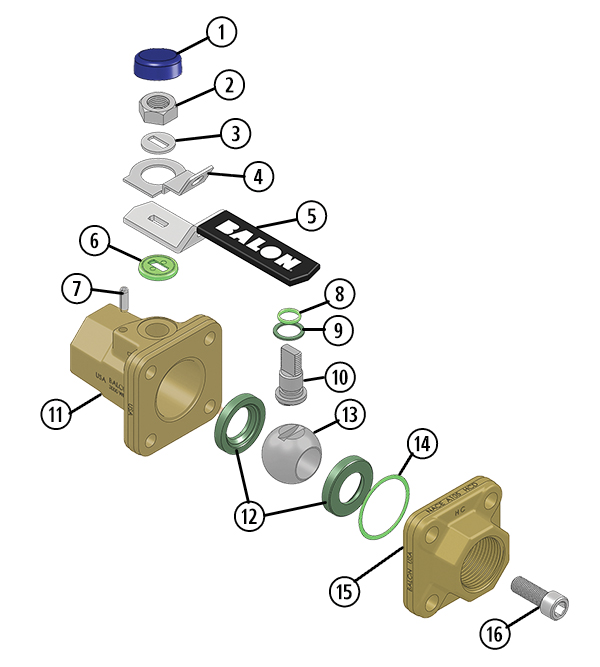

Material Description
ITEM PART
NAME
MATERIAL
(NACE)
LOW TEMP
(NACE)
1 Weather Guard Polypropylene Polypropylene
2 Stem Nut Carbon Steel Carbon Steel
3 Spacer Carbon Steel Carbon Steel
4 Lock Plate Carbon Steel Carbon Steel
5 Handle* Carbon Steel Carbon Steel
6 Stem Washer Acetal Acetal
7 Stop Pin Carbon Steel Carbon Steel
8 Stem O-Ring Fluorocarbon Fluorocarbon
9 Stem Seal TFE TFE
10 Stem 316 Stainless Steel 316 Stainless Steel
11 Body ASTM A105, Normalized/ A350 LF2 CL1 ASTM A350 LF2 CL1
12 Seat Nylon 11 (TFE Optional**) Nylon 11 (TFE Optional**)
13 Ball 316 Stainless Steel 316 Stainless Steel
14 Body Seal Fluorocarbon Fluorocarbon
15 End Adapter ASTM A105, Normalized/ A350 LF2 CL1 ASTM A350 LF2 CL1
16 Body Bolts ASTM A193 B7M/ A320 L7M ASTM A320 L7M
* Handle and lock device are standard.
** Seat selection may result in de-rating of pressure. See Seat Pressure Ratings chart on page TD-4 for more information.

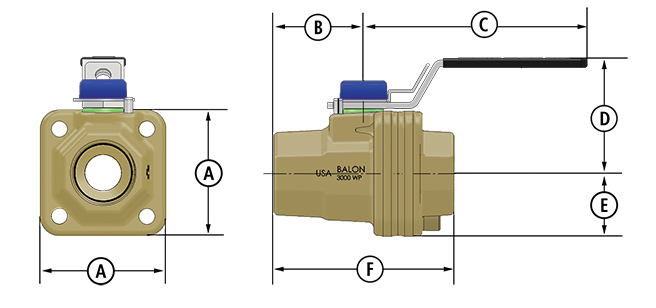

Dimensional Data

SIZE CATALOG NUMBER PORT WP A B C D E F LBS. Cv
NACE TRIM
316 SS
BALL & STEM
LOW TEMP
316 SS
BALL & STEM
.25 x .375 x .25 1/4F-F03N-SE 1/4F-F03NL-SE .37 3000 1.75 1.12 3.50 1.88 0.88 2.25 1.0 -
.50 x .375 x .50 1/2R-F03N-SE 1/2R-F03NL-SE .37 3000 1.75 1.19 3.50 1.88 0.88 2.38 1.0 6
.50 x .50 x .50 1/2F-F03N-SE 1/2F-F03NL-SE .50 3000 1.92 1.38 3.50 1.96 0.96 3.00 3.3 -
.75 x .75 x .75 3/4F-F03N-SE 3/4F-F03NL-SE .75 3000 2.62 1.81 4.87 2.56 1.31 3.62 3.3 -
1 x .75 x 1 1R-F03N-SE 1R-F03NL-SE .75 3000 2.62 1.88 4.87 2.56 1.31 3.75 3.3 30
