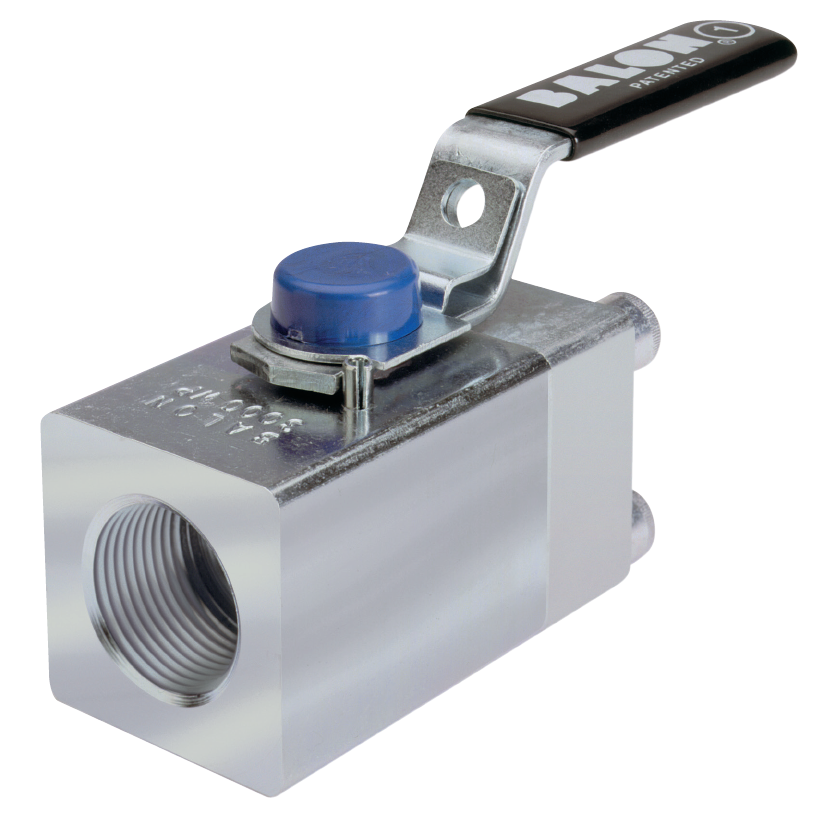

Floating Ball Valve

  • 100% Made in USA
  • 3000 PSI WP
  • ¼" Through 1"
  • Bolted Body Construction

Valve Features
  • Certified Low Emission per API 641
  • Fire Safe Design
  • 316 Stainless Steel Ball and Stem Standard
  • Locking Device Standard
  • Multi-Seal Seats (See page B-5)

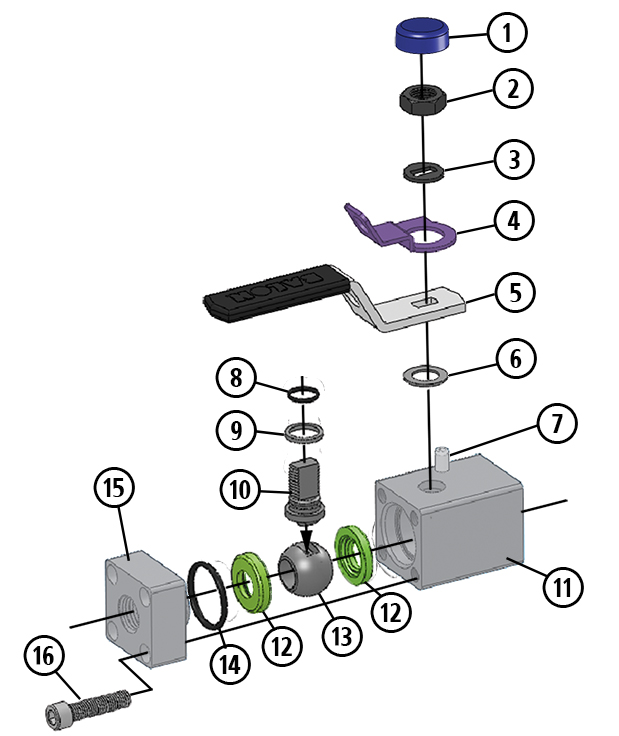

Material Description
ITEM PART
NAME		 MATERIAL
(STANDARD)
1 Weather Guard Polypropylene
2 Stem Nut Carbon Steel
3 Spacer Carbon Steel
4 Lock Plate Carbon Steel
5 Handle* Carbon Steel
6 Stem Washer Acetal
7 Stop Pin Carbon Steel
8 Stem O-Ring Buna-N
9 Stem Seal TFE
10 Stem 316 Stainless Steel
11 Body AISI 1215
12 Ball Seat Nylon 11 (TFE Optional**)
13 Ball 316 Stainless Steel
14 Body Seal Buna-N
15 End Adapter AISI 1215
16 Body Bolts ASTM A193 B7M
* Handle and lock device are standard on all Series LM Ball Valves
** Seat selection may result in de-rating of pressure. See Seat Pressure Ratings chart on page TD-4 for more information.

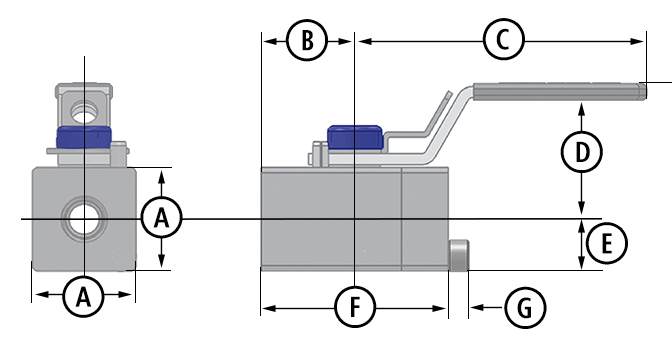

Dimensional Data

SIZE CATALOG NUMBER PORT A B C D E F G LBS. Cv
STANDARD TRIM
316 SS
BALL & STEM
.25x.37x.25 LM-02362 .37 1.25 1.12 3.50 1.62 0.62 2.25 .25 1.0 -
.50x.37x.50 LM-05361 .37 1.25 1.12 3.50 1.62 0.62 2.25 .25 1.0 6
.75x.75x.75 LM-07362 .75 2.00 1.81 4.87 2.25 1.00 3.62 .37 3.5 -
1x.75x1 LM-10361 .75 2.00 1.81 4.87 2.25 1.00 3.62 .37 3.5 30
