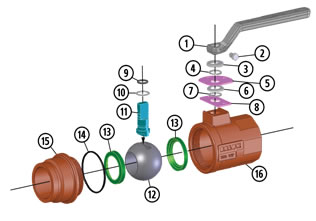

| ITEM |
PART
NAME |
MATERIAL
(STANDARD) |
MATERIAL
(NACE) |
| 1 |
Handle* |
Carbon Steel/Ductile Iron |
Carbon Steel/Ductile Iron |
| 2 |
Handle Bolt |
Standard Hex Bolt |
Standard Hex Bolt |
| 3 |
Weather Guard |
Polypropylene |
Polypropylene |
| 4 |
Lock Plate Retainer |
Carbon Spring Steel |
Carbon Spring Steel |
| 5 |
Lock Plate |
Carbon Steel |
Carbon Steel |
| 6 |
Dust Cover |
Polypropylene |
Polypropylene |
| 7 |
Stop Plate Retainer |
Carbon Spring Steel |
Carbon Spring Steel |
| 8 |
Stop Plate |
Carbon Steel |
Carbon Steel |
| 9 |
Stem O-Ring |
Buna-N |
Fluorocarbon |
| 10 |
Stem Seal |
TFE |
TFE |
| 11 |
Stem |
Carbon Steel |
316 Stainless Steel |
| 12 |
Ball |
Carbon Steel
Nickel Chrome Plated |
316 Stainless Steel |
| 13 |
Ball Seat |
Nylon 11 (TFE Optional**) |
Nylon 11 (TFE Optional**) |
| 14 |
Body O-Ring |
Buna-N |
Fluorocarbon |
| 15 |
End Adapter |
ASTM A395 Class 60-40-18 Fully Annealed |
ASTM A395 Class 60-40-18 Fully Annealed |
| 16 |
Body |
ASTM A395 Class 60-40-18 Fully Annealed |
ASTM A395 Class 60-40-18 Fully Annealed |
* Handle is optional. Balon valves can also be operated with a standard open-end wrench.
** Seat selection may result in de-rating of pressure. See
Seat Pressure Ratings chart on page TD-4 for more information.
Also available: Male Threaded x Grooved End Connection
