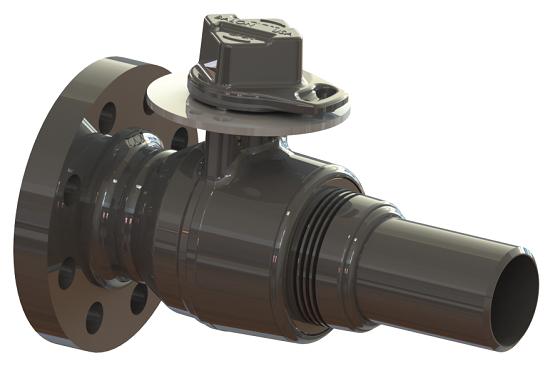

Series US

Carbon Steel

Weld x Flange Connection



ANSI Class 150, 300

Floating Ball Valve

  • 100% Made in USA
  • ANSI Class 150 (285 PSI WP)
  • ANSI Class 300 (740 PSI WP)
  • 2" Through 6"
  • Welded Body Construction

Valve Features
  • Certified Low Emission per API 641
  • Fire Safe Design
  • Meets/Exceeds-ASME B16.34
  • Rugged Double Stops
  • Heat Dissipating Fins for Protection of Seats and Seals During Welding
  • Each Valve Marked With A Unique Identification Number
  • True Full Port for Hot Tap Service
  • 316 Stainless Steel Stem Standard
  • Multi-Seal Seats (See page B-5)

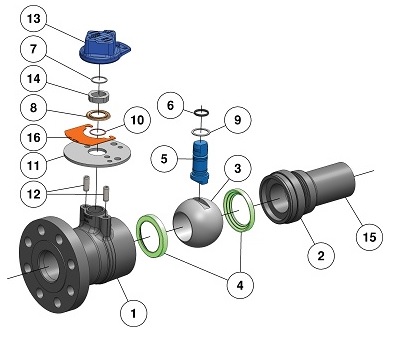

Material Description
ITEM PART
NAME		 MATERIAL
(STANDARD)
1 Body ASTM A105, Normalized
2 Adapter ASTM A105, Normalized
3 Ball Carbon Steel - Nickel Chrome Plated
4 Seats Nylon 11
5 Stem 316 Stainless Steel
6 Stem O-Ring Buna-N
7 Snap Ring Carbon Steel
8 Weather Seal Nylon 11
9 Stem Seal TFE
10 Snap Ring Carbon Steel
11 Lock Plate Carbon Steel
12 Stop Pin Stainless Steel
13 Drive Nut - 2" Square Ductile Iron/Carbon Steel
14 Stem Connector Carbon Steel
15 Pipe ASTM A106 Grade C
16 Tag Stainless Steel


Dimensional Data

SIZE CATALOG NUMBER PORT / A WP B C D E F G LBS. Cv
2x1.5x2 2R-US13-WRF 1.5 285 10.50 4.5 6.00 2 4.50 6.9 18.5 148
2x1.5x2 2R-US33-WRF 1.5 740 10.60 4.5 6.50 2 4.50 6.9 20.1 148
2x2x2 2F-US13-WRF 2.0 285 10.90 4.9 6.00 2 4.50 7.0 22.5 -
2x2x2 2F-US33-WRF 2.0 740 11.00 4.9 6.50 2 4.50 7.0 24.0 -
3x3x3 3F-US13-WRF 3.0 285 11.70 5.9 7.50 2 4.50 7.0 47.0 -
3x3x3 3F-US33-WRF 3.0 740 11.90 5.9 8.25 2 4.50 7.0 51.2 -
4x3x4 4R-US13-WRF 3.0 285 12.20 5.9 9.00 2 4.50 7.4 54.2 662
4x3x4 4R-US33-WRF 3.0 740 12.50 5.9 10.00 2 4.50 7.4 63.5 662
4x4x4 4F-US13-WRF 4.0 285 12.80 6.6 9.00 2 4.50 7.6 71.5 -
4x4x4 4F-US33-WRF 4.0 740 13.10 6.6 10.00 2 4.50 7.6 80.7 -
6x6x6 6F-US13-WRF* 6.0 285 16.74 12.4 11.00 2 5.25 9.0 138.0 -
6x6x6 6F-US33-WRF* 6.0 740 16.93 12.4 12.50 2 5.25 9.0 175.0 -
* Also available with Gear Operator.
Available with flat face flange in certain sizes
Please contact factory for additional information.
