Series F

Carbon Steel

Flanged End Connection



ANSI Class 150

Floating Ball Valve


  • 100% Made in USA
  • ANSI Class 150 (285 PSI WP)
  • 6" Through 10"
  • Bolted Body Construction

Valve Features
  • Certified Low Emission per API 641
  • Certified Fire Safe per API 6FA
  • Exclusive Balon Gearbox (See page G-2)
  • NACE Option With 316 Stainless Steel Ball and Stem Available
  • Multi-Seal Seats (See page B-5)
  • Available in Low-Temp Service to -50°F

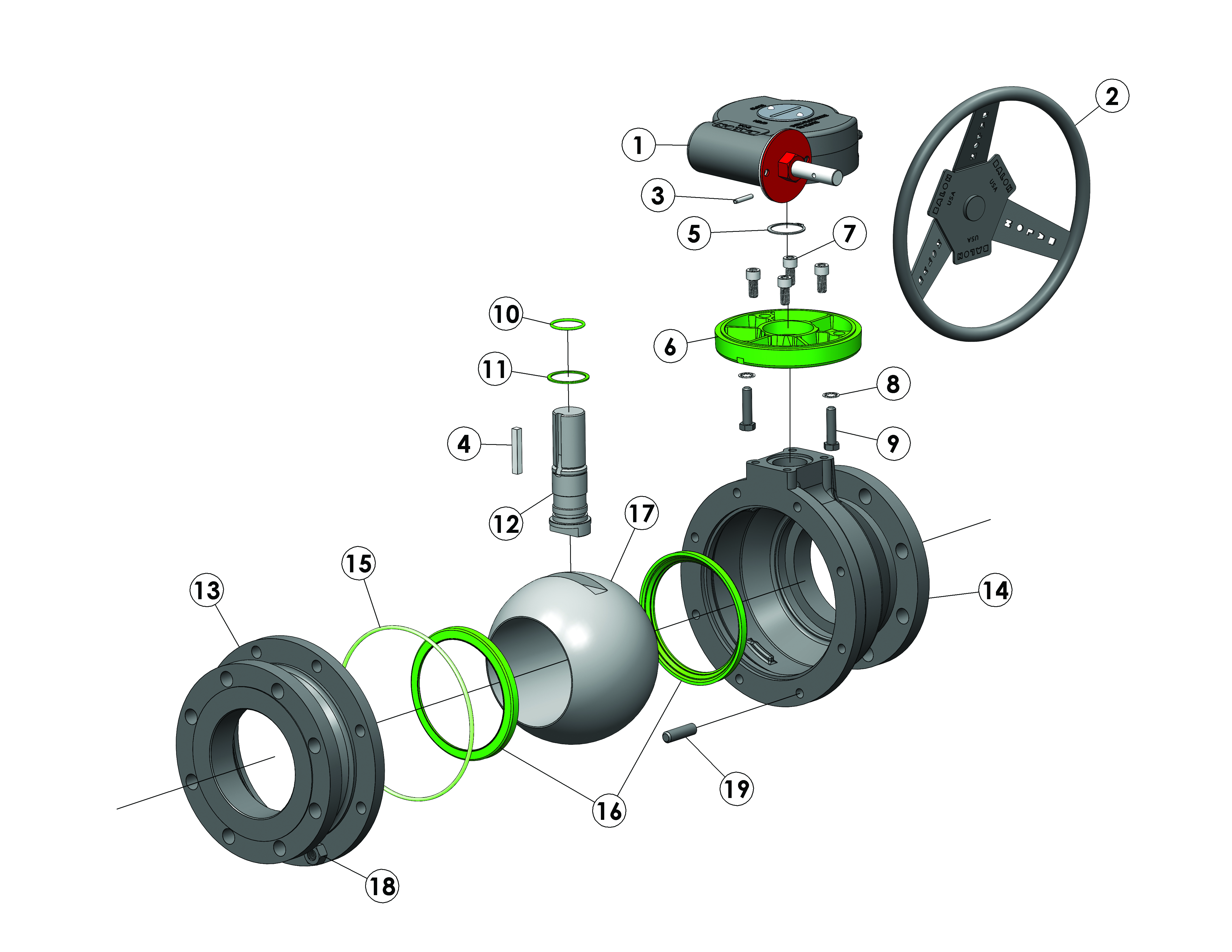

Material Description
ITEM PART
NAME
MATERIAL
(STANDARD)
MATERIAL
(NACE)
LOW TEMP
(NACE)
1 Gear Operator Ductile Iron Ductile Iron Ductile Iron
2 Hand Wheel Carbon Steel Carbon Steel Carbon Steel
3 Drive Pin Carbon Spring Steel Carbon Spring Steel Carbon Spring Steel
4 Stem Key Steel Key Stock Steel Key Stock Steel Key Stock
5 Stem Retainer Ring Carbon Spring Steel Carbon Spring Steel Carbon Spring Steel
6 Mounting Plate Ductile Iron Ductile Iron Ductile Iron
7 Mounting Plate Screws Alloy Steel Alloy Steel Alloy Steel
8 Lock Washers Carbon Steel Carbon Steel Carbon Steel
9 Mounting Screws Alloy Steel Alloy Steel Alloy Steel
10 Stem O-Ring Buna-N Fluorocarbon Fluorocarbon
11 Stem Seal TFE TFE TFE
12 Stem Carbon Steel 316 Stainless Steel 316 Stainless Steel
13 End Adapter* ASTM A105, Normalized ASTM A105, Normalized ASTM A350 LF2 CL1
14 Body* ASTM A105, Normalized ASTM A105, Normalized ASTM A350 LF2 CL1
15 Body O-Ring Buna-N Fluorocarbon Fluorocarbon
16 Ball Seats Nylon 11 (TFE Optional**) Nylon 11 (TFE Optional**) Nylon 11 (TFE Optional**)
17 Ball Carbon Steel Nickel Chrome Plated 316 Stainless Steel 316 Stainless Steel
18 Nuts ASTM A194 2H ASTM A194 2HM ASTM A320 7M
19 Body Bolts ASTM A193 B7 ASTM A193 B7M ASTM A320 L7M
* Body/Adapter on 10R-F13 is ASTM A216 WCB or A352 LCC.
** Seat selection may result in de-rating of pressure. See Seat Pressure Ratings chart on page TD-4 for more information.

Dimensional Data
The Balon Valve: Totally Advanced
The Balon Valve: Totally Advanced
SIZE CATALOG NUMBER PORT A B C D E F G LBS. Cv
STANDARD TRIM
CARBON STEEL
BALL & STEM
NACE TRIM
316 SS
BALL & STEM
LOW TEMP
316 SS
BALL & STEM
6x6x6 6F-F13-RF 6F-F13N-RF 6F-F13NL-RF 6 10.5 4.50 4.00 9.75 14 9.0 11.19 230 -
6x6x6 6F-F13-RF15.5-RF 6F-F13N-RF15.5 6F-F13NL-RF15.5 6 15.5 4.50 4.00 9.75 14 9.0 11.19 255 -
8x6x8 8R-F13-RF 8R-F13N-RF N/A 6 11.5 5.12 4.00 9.75 14 9.0 11.19 285 2200
8x8x8 8F-F13-RF 8F-F13N-RF 8F-F13NL-RF 8 18.0 8.00 5.25 12.00 20 11.5 13.75 520 -
10x8x10 10R-F13-RF 10R-F13N-RF N/A 8 21.0 9.00 5.25 12.00 20 11.5 13.75 580 4200
