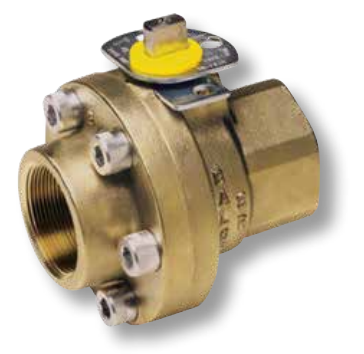

Enhanced Protection Against CO2 and Saltwater Corrosion
NACE Standard
Multi-Seal Seats
Fire Safe Design
Minimizes Risk of Galling Associated with Stainless Steel
Exceptional Yield Strength
Rugged Locking Device Standard
Maintenance Free

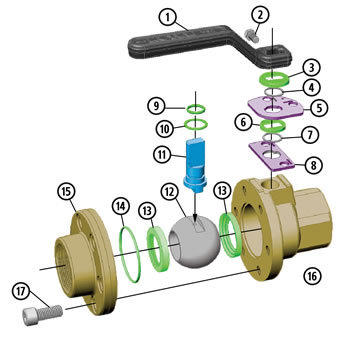

Material Description
ITEM
PART NAME
MATERIAL NACE (STANDARD)
1
Handle*
Carbon Steel
2
Handle Bolt
Standard Hex Bolt
3
Weather Guard
Polyethylene
4
Lock Plate Retainer
Stainless Steel
5
Lock Plate
Stainless Steel
6
Dust Cover
Polyethylene
7
Stop Plate Retainer
Stainless Steel
8
Stop Plate
Stainless Steel
9
Stem O-Ring
Fluorocarbon
10
Stem Seal
TFE
11
Stem
316 Stainless Steel
12
Ball
316 Stainless Steel
13
Ball Seat
Nylon (TFE Optional**)
14
Body O-Ring
Fluorocarbon
15
End Adapter
ASTM B148-9D (955)
16
Body
ASTM B148-9D (955)
17
Body Stud Bolts
ASTM A193 B7M
* Handle is optional. Balon valves can also be operated with a standard open-end wrench.
** Seat selection may result in de-rating of pressure. See Seat Pressure Ratings chart on page B-37 for more information.

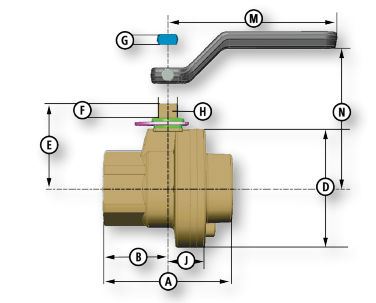

Dimensional Data
SIZE
CATALOG NUMBER
PORT
WP
A
B
D
E
F
G
H
J
M
N
LBS.
HANDLE
Cv
1x1x1
1F-F04N-SE
1
3000
3.87
1.93
3.37
2.37
.50
.340
.685
1.12
4.37
2
4
P-333-CS
-
2x1.5x2
2R-F04N-SE
1.5
3000
5.50
2.75
4.87
3.62
.75
.434
.873
1.62
7.25
5.25
12.5
P-4128-CS
125
2x2x2
2F-F94N-SE
2
2000
5.75
2.87
6.12
4.37
.87
.497
.998
2
10.25
6.20
19
P-4129-CS
-
* Balon manufactured Actuation Mounting Hardware available. Please see page A-2 for details.
